This Driver is only compatible with LED Strip Dimmer Modules, we recommend Varilight V-COM.

Product Overview

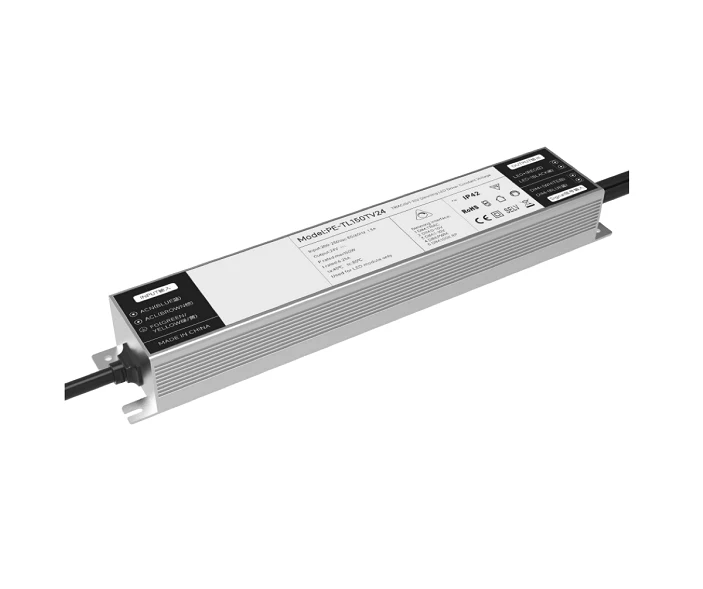

The IP42 60W Constant Voltage 24V & 1–10V Soft Start TRIAC Dimmable Driver is a versatile dual-dimming power supply designed for 24V LED strip installations. It features soft-start on initial power-up, creating a smoother, more refined and luxury feel when the lighting switches on.

Offering dual dimming functionality, the driver supports both TRIAC (mains) dimming and 1–10V dimming within a single compact unit, giving installers flexible control options across residential and commercial lighting projects.

Operating from a 240V mains input, the driver provides a stable 24V DC constant voltage output for LED strip, along with a dedicated 1–10V dimming control output. The 1–10V terminals are pre-terminated, allowing immediate connection to standard 1–10V dimmers.

For TRIAC dimming, the unit must be paired only with the Varilight V-COM dimmer module, ensuring smooth, flicker-free performance.
Built-in electronic protection safeguards against short circuit, overload and overheating, with adjustable resistance available for fine tuning.

Key Features
• Dual dimming: TRIAC (mains) dimming + 1–10V dimming
• Soft-start on initial power-up for a smoother, luxury switch-on effect
• 240V mains input with 24V DC constant-voltage output
• 1–10V terminals pre-terminated for quick installation
• TRIAC dimming compatibility: Varilight V-COM module only
• Flicker-free, smooth dimming performance
• Adjustable resistance for tuning
• Electronic protections: Short circuit / Overload / Overheating
• Compact, lightweight design
• IP42 indoor-rated

Product Specification
• Input Voltage: 200–250V AC (240V mains)
• Output Voltage: 24V DC constant voltage
• Dimming Outputs:
 – TRIAC mains dimming (Varilight V-COM only)
 – 1–10V control signal, pre-terminated
• Power Rating: 60W
• Soft-Start: Yes, on initial power-up
• Flicker-Free Dimming: Yes
• Protection: Short circuit / Overload / Overheating
• IP Rating: IP42 (indoor use only)
• Output Current: 2.5A
• Dimensions: 165 (190) x 37 x 27mm
• Application: 24V LED strip, architectural linear lighting, residential & commercial dimming systems
• Certification: CE/RoHS
